Harvia
Electric Sauna Heater The Wall SW45 Black Steel
HSW450400M Harvia 4,5 kW 3-6 m3
+ shipping, calculated at checkout
You pay 4 636 NOK at checkout. The remaining 1 034 NOK is invoiced when the goods arrive in Norway.
Delivery time approx. 2–4 weeks
Electrical connection in Norway
The heater can be connected to 230 V 3~ / 400 V 3N~ / 230 V 1N~.
The heater is delivered wired for 400 V 3N~ and is rewired by the electrician to 230 V 3~ or 230 V 1N~ as needed. It is the same heater – no separate Norwegian version is required.
Before buying, check with your electrician how much power can be supplied to the heater from the distribution board.
The heater is intended for fixed installation and must only be installed by a registered electrical contractor. The electrician needs both the heater power and the fuse requirement for the chosen voltage.
Fuse and cable cross-section, 4,5 kW
| Fuse | Cable | |
|---|---|---|
| 230 V 1~ | 20 A | 4 mm² |
| 230 V 3~ | 13 A | 2,5 mm² |
| 400 V 3N~ | 10 A | 1,5 mm² |
Source: Harvia. Indicative – the electrician sizes according to NEK 400.
Electric Sauna Heater The Wall SW45 Black Steel HSW450400M Harvia 4,5 kW 3-6 m3
The heater's design is streamlined and Scandinavian minimalist. The Wall heater stylishly takes up very little space in the sauna. The focus in the production of the device has been primarily on practicality: illuminated controls, easy installation and durable structural solutions make The Wall a great heater in terms of features. All this in a compact and stylish The Wall unit.

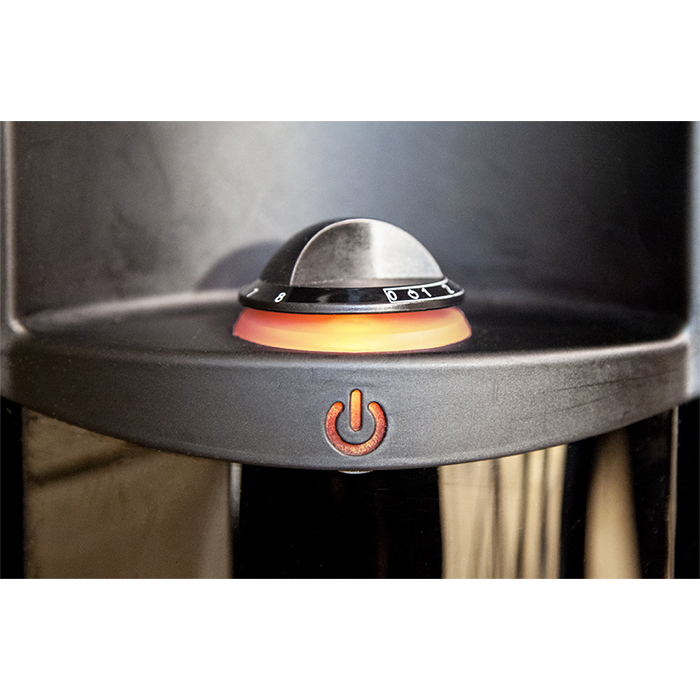

The operating time switch and the thermostat for temperature are both illuminated. The ergonomic illuminated control knob stands out at the top of the heater, making it easy to operate. The lighting makes it easier to use in low light. The less frequently used thermostat control is located at the bottom of the heater. The side of operation (right/left) can be selected during installation.
The Wall heater is durable in its structure and heating elements: there is a support structure for the elements that protects them, prevents warping and extends the service life. Components exposed to heat and moisture are located in the lower part of the heater and the structure of the heater element is designed to last a long time without compromising heating power.

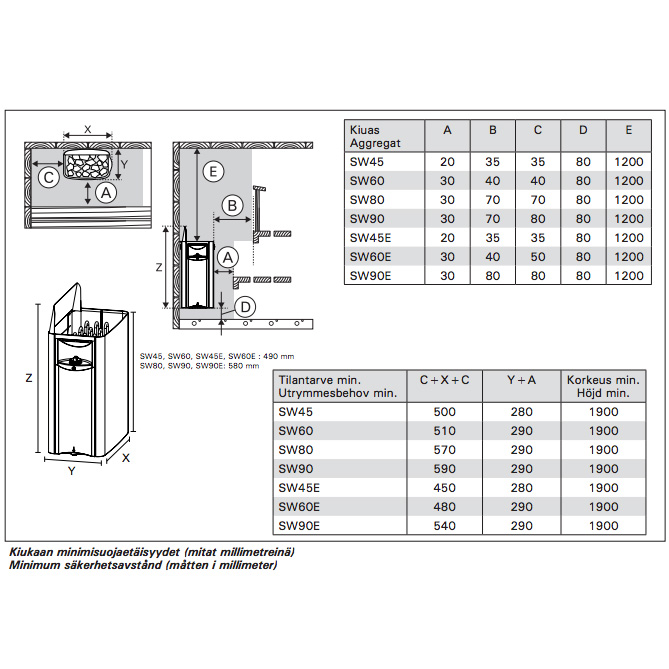

The heater's installation is effortless and fast. The included installation/wall rack determines the minimum safety distance between the heater and the floor.
Technical specifications:
- Model: Harvia SW45
- Product number: HSW450400M
- EAN: 6417659026499
- Color: Black steel
- Power: 4,5 kW
- Weight: 11,7 kg
- Depth: 26 cm
- Width: 43 cm
- Height: 61 cm
- Sauna size: 3 - 6 m3
- Minimum sauna height: 190 cm
- Stone capacity max.: 20 kg
- Voltage: 3-phase 400 V 3N
- Connection cable: 5 x 1,5 mm2
- Fuse: 3 x 6 A
SKU: 6417659026499
Attachments
Electric Sauna Heater The Wall SW45 Black Steel HSW450400M Harvia 4,5 kW 3-6 m3
The heater's design is streamlined and Scandinavian minimalist. The Wall heater stylishly takes up very little space in the sauna. The focus in the production of the device has been primarily on practicality: illuminated controls, easy installation and durable structural solutions make The Wall a great heater in terms of features. All this in a compact and stylish The Wall unit.
The operating time switch and the thermostat for temperature are both illuminated. The ergonomic illuminated control knob stands out at the top of the heater, making it easy to operate. The lighting makes it easier to use in low light. The less frequently used thermostat control is located at the bottom of the heater. The side of operation (right/left) can be selected during installation.
The Wall heater is durable in its structure and heating elements: there is a support structure for the elements that protects them, prevents warping and extends the service life. Components exposed to heat and moisture are located in the lower part of the heater and the structure of the heater element is designed to last a long time without compromising heating power.
The heater's installation is effortless and fast. The included installation/wall rack determines the minimum safety distance between the heater and the floor.
Technical specifications:
- Model: Harvia SW45
- Product number: HSW450400M
- EAN: 6417659026499
- Color: Black steel
- Power: 4,5 kW
- Weight: 11,7 kg
- Depth: 26 cm
- Width: 43 cm
- Height: 61 cm
- Sauna size: 3 - 6 m3
- Minimum sauna height: 190 cm
- Stone capacity max.: 20 kg
- Voltage: 3-phase 400 V 3N
- Connection cable: 5 x 1,5 mm2
- Fuse: 3 x 6 A
