Harvia
Harvia 22 GreenFlame RS Wood Stove
(V) WKHA20GRSM 9-18 m³ for Sauna
+ shipping, calculated at checkout
You pay 9 520 NOK at checkout. The remaining 2 255 NOK is invoiced when the goods arrive in Norway.
Delivery time approx. 2–4 weeks

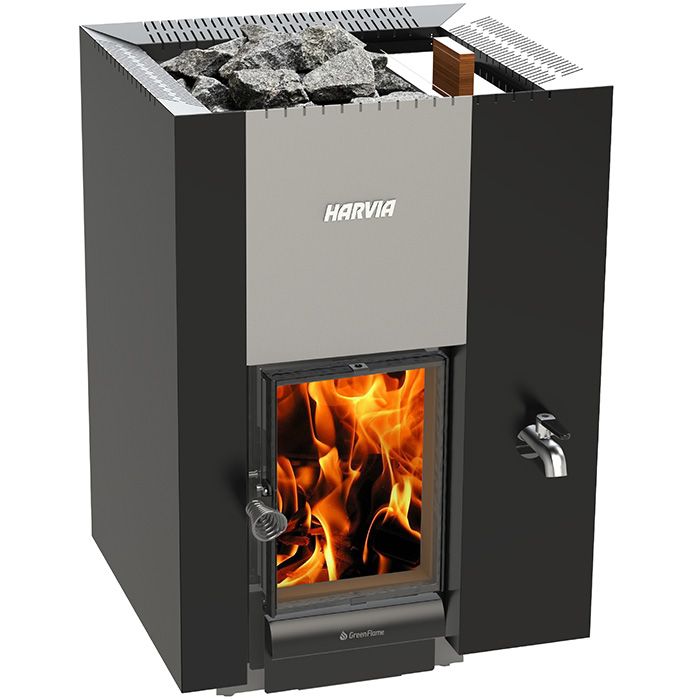

Harvia 22 GreenFlame RS Wood Stove, WKHA20GRSM 9-18 m³ for Sauna
The Harvia 22 GreenFlame is a sleek and timeless black wood-burning stove with steel details. Its large glass door creates ambiance and beautifully showcases the flames. This stove, suitable for medium-sized saunas, is more environmentally friendly thanks to the GreenFlame technology, ensuring a well-controlled fire, reliable operation, and a long service life.
The stone load of the Harvia 22 GreenFlame heats the entire sauna quickly, providing the perfect steam even for demanding sauna users. Harvia 22 GreenFlame represents the premier quality of stove technology. The heart of the stove has been fully revamped with the GreenFlame® combustion chamber, developed for clean burning. As a result, the fine particle emissions from burning wood are reduced to a fifth of previous levels, and smoke emissions are 70% lower.
The upgraded GreenFlame combustion chamber is part of Harvia's long-term development work towards clean burning and emissions reduction. Harvia has set a long-term goal to halve the fine particle emissions from wood stoves. With water tank models of the Harvia 22 GreenFlame stove, you can heat your bathing water simultaneously with the sauna at 20% lower emissions. Based on your sauna decor, you can choose the model that best suits your needs.
The water tank is either fixed at the front (ES), on the right (RS), or on the left (LS) side. The water tap is conveniently located at the bottom of the stove, where hot water can be safely drained into a container.
Model: Harvia WKHA20GRSM
Nominal power: 15.7 kW
Includes water tank: Yes (Right side)
Height: 770 mm
Depth: 510 mm
Width: 550 mm
Color: Black
Weight without stones: 78 kg
Sauna size: 9-18 m³
Glass door usability: Interchangeable
Maximum stone load: 40 kg (stones 10-15 cm)
Leg adjustment range: 0-3 cm
Maximum firewood length: 39 cm
Thickness of the fire cover: 10 mm
Warranty: 2 years from Harvia
Firebox size: 290 x 208 x 400 mm
Required temperature class from smoke flue: T600
Flue connection diameter: 115 mm
Flue connection locations: Rear and top
Rear connection hole location from floor to center of hole: 558 mm
Top connection hole location from floor to bottom of the hole: 708 mm
Top connection hole location from back edge to center of hole: 136 mm
Minimum clearance distances to ceiling: 1265 mm
Clearance distances to side: 400 mm
Clearance distances to back: 380 mm
Clearance distances to front: 500 mm
Note! Always check the latest and accurate technical product information and dimensions from the product manual. The latest operating manual can always be downloaded from https://mediabank.harvia.com/
