Harvia
Harvia Cilindro Electric Sauna Heater 7kW
HPC700400 Grill 6-10m3
Delivery time approx. 2–4 weeks
Electrical connection in Norway
The heater can be connected to 230 V 3~ / 400 V 3N~ / 230 V 1N~.
The heater is delivered wired for 400 V 3N~ and is rewired by the electrician to 230 V 3~ or 230 V 1N~ as needed. It is the same heater – no separate Norwegian version is required.
Before buying, check with your electrician how much power can be supplied to the heater from the distribution board.
The heater is intended for fixed installation and must only be installed by a registered electrical contractor. The electrician needs both the heater power and the fuse requirement for the chosen voltage.
Fuse and cable cross-section, 6,8 kW
| Fuse | Cable | |
|---|---|---|
| 230 V 1~ | 32 A | 10 mm² |
| 230 V 3~ | 20 A | 4 mm² |
| 400 V 3N~ | 10 A | 2,5 mm² |
Source: Harvia. Indicative – the electrician sizes according to NEK 400.

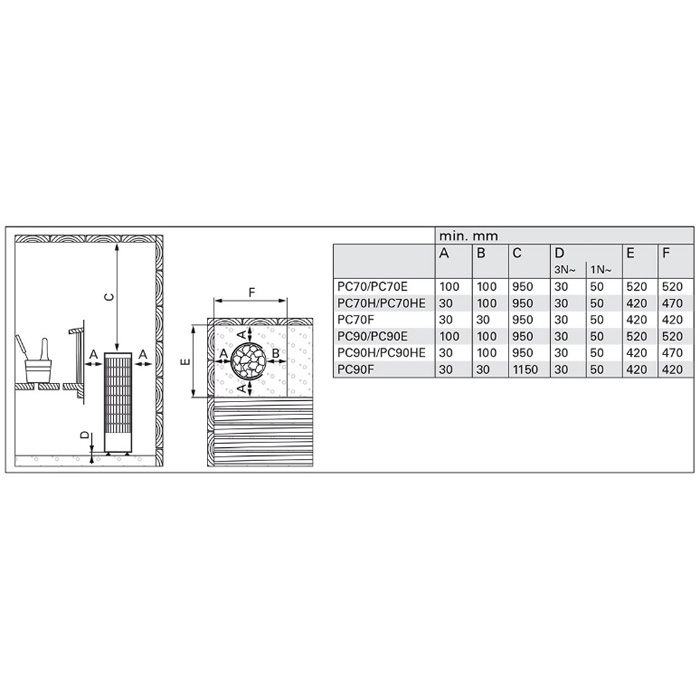

The Harvia Cilindro PC70 is an affordable and popular pillar heater for 6-10 m3 family saunas. Offering excellent value for money, Cilindro pillar heaters provide a soft and humid, yet powerful sauna experience, generated by the massive 80 kg of sauna stones! The Cilindro PC70 has a power output of 6.8 kW and features an outer shell made of perforated stainless steel. The heater includes an integrated control unit on the lower front side, featuring a thermostat for temperature adjustment and a timer for switching the heater on/off or delaying the start. The PC70 has a diameter of 320 mm, a height of 930 mm, and a weight of 10 kg without stones. Safety distance to flammable materials is min. 100 mm; see installation instructions for details. The heater comes with adjustable legs for leveling and wall mounting brackets for stability. Optional accessories include the HPC1 mounting flange for embedding the heater into the benches and the HPC3 protective railing. Harvia provides a 2-year warranty for residential use.
Power: 7 kW
Min. sauna volume (m3): 6 m3
Max. sauna volume (m3): 10 m3
Dimensions: Width: 320 mm / Height: 930 mm / Depth: 320 mm
Weight: 10 kg
Max. stone capacity (kg): 80 kg
Min. sauna height: 190 cm
Control unit: Integrated
SKU: 6410082610068
Attachments
The Harvia Cilindro PC70 is an affordable and popular pillar heater for 6-10 m3 family saunas. Offering excellent value for money, Cilindro pillar heaters provide a soft and humid, yet powerful sauna experience, generated by the massive 80 kg of sauna stones! The Cilindro PC70 has a power output of 6.8 kW and features an outer shell made of perforated stainless steel. The heater includes an integrated control unit on the lower front side, featuring a thermostat for temperature adjustment and a timer for switching the heater on/off or delaying the start. The PC70 has a diameter of 320 mm, a height of 930 mm, and a weight of 10 kg without stones. Safety distance to flammable materials is min. 100 mm; see installation instructions for details. The heater comes with adjustable legs for leveling and wall mounting brackets for stability. Optional accessories include the HPC1 mounting flange for embedding the heater into the benches and the HPC3 protective railing. Harvia provides a 2-year warranty for residential use.
Power: 7 kW
Min. sauna volume (m3): 6 m3
Max. sauna volume (m3): 10 m3
Dimensions: Width: 320 mm / Height: 930 mm / Depth: 320 mm
Weight: 10 kg
Max. stone capacity (kg): 80 kg
Min. sauna height: 190 cm
Control unit: Integrated
