Harvia Cilindro Electric Sauna Heater 9KW
HPC900400 8-14m3
+ shipping, calculated at checkout
You pay 4 363 NOK at checkout. The remaining 966 NOK is invoiced when the goods arrive in Norway.
Delivery time approx. 2–4 weeks
Electrical connection in Norway
The heater can be connected to 230 V 3~ / 400 V 3N~ / 230 V 1N~.
The heater is delivered wired for 400 V 3N~ and is rewired by the electrician to 230 V 3~ or 230 V 1N~ as needed. It is the same heater – no separate Norwegian version is required.
Before buying, check with your electrician how much power can be supplied to the heater from the distribution board.
The heater is intended for fixed installation and must only be installed by a registered electrical contractor. The electrician needs both the heater power and the fuse requirement for the chosen voltage.
Fuse and cable cross-section, 9 kW
| Fuse | Cable | |
|---|---|---|
| 230 V 1~ | 40 A | 10 mm² |
| 230 V 3~ | 25 A | 4 mm² |
| 400 V 3N~ | 16 A | 4 mm² |
Source: Harvia. Indicative – the electrician sizes according to NEK 400.
Harvia Cilindro Electric Sauna Heater 9KW, HPC900400 for 8-14 M3 Sauna

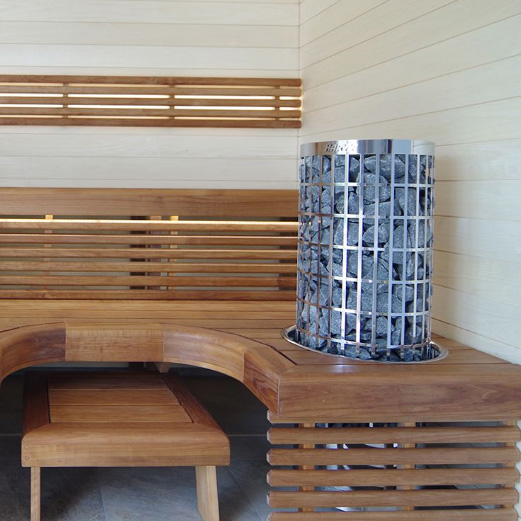

The Harvia Cilindro electric sauna heater contains a massive amount of stones. Thanks to the open outer casing, every bather can choose their preferred steam: soft steam from the side or sharper steam directly from the top of the stone pillar. Cilindro is handsome to look at and a pleasure to experience. Harvia Cilindro is a 9 kW pillar heater for 8-14 m3 family saunas. The massive amount of stones provides a delightful sauna experience. The outer casing is made of perforated stainless steel. The large stone surface allows for adjustable steam intensity by directing water onto either the side or the top of the pillar. The heater has a built-in control unit with switches located at the bottom front.
Power: 9 kW
Min. sauna size: 8 m3
Max. sauna size: 14 m3
Dimensions: Width: 320 mm / Height: 930 mm / Depth: 320 mm
Weight: 10 kg
Max. stone capacity: 80 kg
Min. ceiling height: 190 cm
Control: Built-in
SKU: 641008261006828
