Insulated Pipe End Cap 4 22-40 /160

Insulated Pipe End Cap 4 22-40/160mm

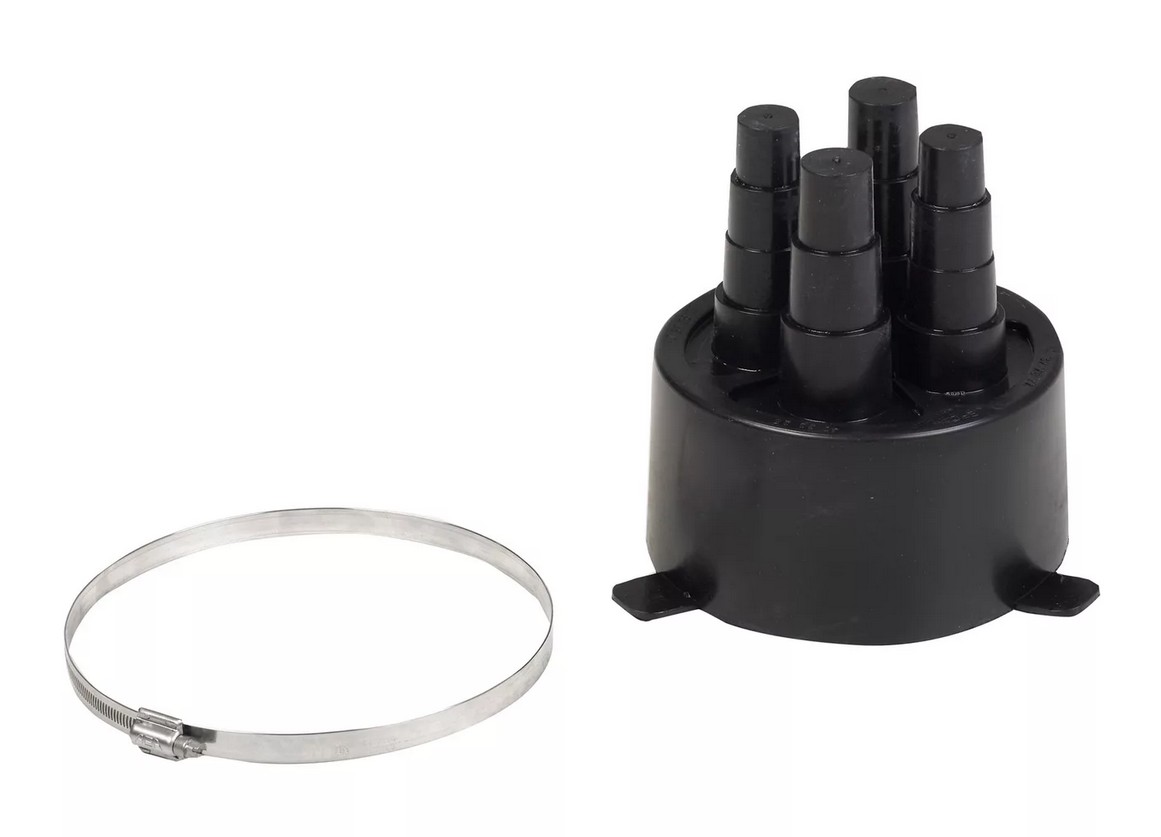

The end cap 4 22–40/160 is designed to seal and protect the ends of pre-insulated service or heating water pipes, when the outer diameter of the pipe is 160 mm and the inner pipes’ diameter is 22–40 mm. The end cap prevents moisture from reaching the pipe insulation layers and is always used in trenches with insulated pipes. The end caps have pass-through openings according to the size of the flow pipes and are cut open with scissors at the corresponding point of the pipe size. The end cap is attached around the protective shell of the pipe using a stainless steel tightening strap; the elastic pass-through openings for flow pipes are tight as they are.

The insulated pipe end caps are made of EPDM rubber.

---

Features:

• Compatibility: Four-pipe pre-insulated pipes with:
  – Inner pipes: Ø 22–40 mm
  – Outer shell: Ø 160 mm

• Application: Protection and sealing of pipe line ends

• Material: EPDM rubber

• Installation: Easy push-fit installation - no separate tools required

• Usage: For ends of water and heating pipes between buildings

---

Applications:

• For insulated service water and heating conduit ends

• To protect insulation during construction or service

• Suitable for Meltex MX-4-Flex pipes (Ø160 mm shell)

---

Approved and recommended accessory for all pre-insulated four-pipe MX pipes - finish the installation safely and neatly.
