Meltex
MX Geothermal Distribution Pit 1-3 Circuits
(V) 2002519 Inlet for Manifold 75mm
19 096 NOKExcl. VAT
Goods excl. VAT19 096 NOK
Customs fee500 NOK
VAT 25 % on import4 774 NOK
Estimated total price24 370 NOK
+ shipping, calculated at checkout
You pay 19 596 NOK at checkout. The remaining 4 774 NOK is invoiced when the goods arrive in Norway.
Available for order
Delivery time approx. 5–12 business days
This product exceeds Norway's 3 750 NOK import threshold, so prices are shown excluding VAT and the 25 % VAT is invoiced when the goods arrive in Norway. The estimated total above already includes both the VAT and the 500 NOK customs fee.

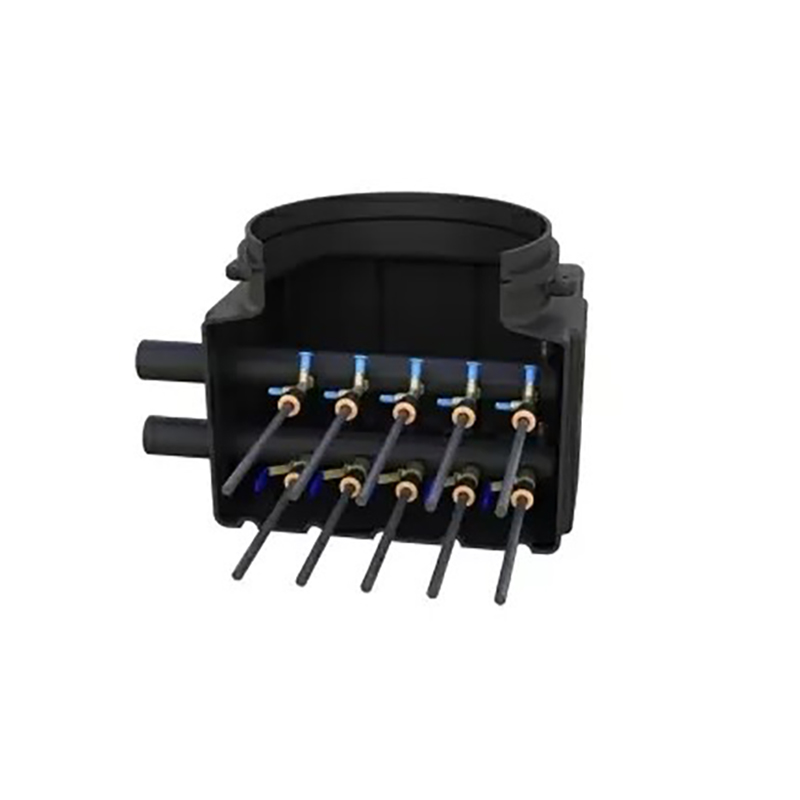

MX Geothermal Distribution Pit 1-3 Circuits 2002519 Inlet for Manifold 75mm
The geothermal distribution pit is designed for connecting collection circuits. The sealing material for NC-Flow valves is EPDM. The material for Plasson fittings is polypropylene. Meltex's geothermal collection pit has been developed in collaboration with customers. The primary advantage of the pit is the implementation of branch pipe connections using fittings instead of electric welding. This significantly speeds up product installation time since pipes can be pressed into place instead of waiting for welding and cooling times.
The entry points for collection pipes (40mm) into the pit are implemented with entry rubbers, which are still sealed during the manufacturing stage. This way, not all circuits need to be put into use immediately, and during installation, it is only necessary to ensure that the shut-off and line control valve connections for unused circuits are tightened.
The line control valves of the distribution pit are equipped with optical flow meters, making the balancing of collection circuits in worksite conditions very easy.
Technical specifications:
- Inlet for manifold: 75 mm
- Size: 1-3 circuits
- Color: black
- Material: polyethylene
- Supplier: Meltex
NOTE! The sealing material for Plasson fittings used in the pit is NBR. Ensure the material's compatibility with the geothermal fluid used.
The geothermal distribution pit is designed for connecting collection circuits. The sealing material for NC-Flow valves is EPDM. The material for Plasson fittings is polypropylene. Meltex's geothermal collection pit has been developed in collaboration with customers. The primary advantage of the pit is the implementation of branch pipe connections using fittings instead of electric welding. This significantly speeds up product installation time since pipes can be pressed into place instead of waiting for welding and cooling times.
The entry points for collection pipes (40mm) into the pit are implemented with entry rubbers, which are still sealed during the manufacturing stage. This way, not all circuits need to be put into use immediately, and during installation, it is only necessary to ensure that the shut-off and line control valve connections for unused circuits are tightened.
The line control valves of the distribution pit are equipped with optical flow meters, making the balancing of collection circuits in worksite conditions very easy.
Technical specifications:
- Size: 1-3 circuits
- Color: black
- Material: polyethylene
- Supplier: Meltex
