Meltex
MX-Sako Absorption Package 3/2000 Low
(V) 3622210 Meltex
+ shipping, calculated at checkout
You pay 30 772 NOK at checkout. The remaining 7 568 NOK is invoiced when the goods arrive in Norway.
Delivery time approx. 5–12 business days

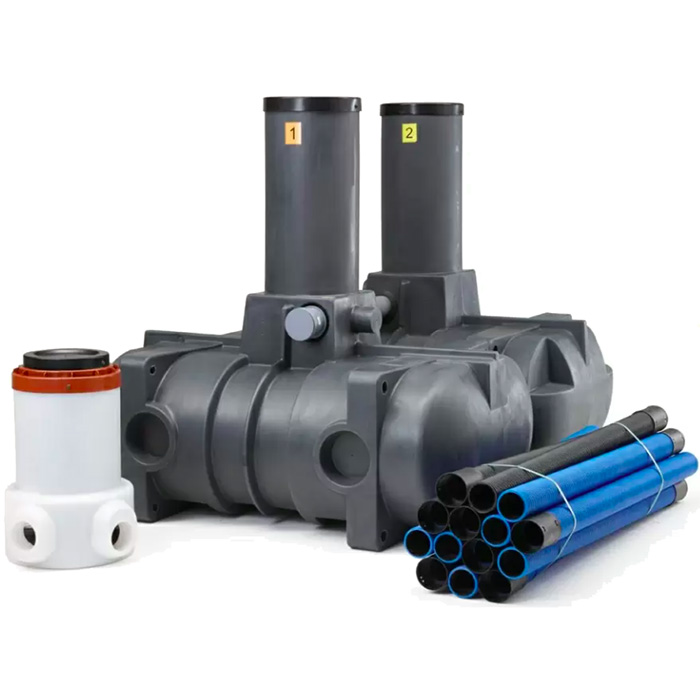

MX-Sako Absorption Package 3/2000 Low 3622210 Meltex
A perfect absorption package for washing, household, and toilet water in a detached house or a year-round leisure house. The low structure allows for installation in difficult places.
Environmentally friendly, biological-mechanical operating principle:
The MX-Sako 3/2000 Low settling tank's three-part tank effectively separates solids and kitchen water fat from the wastewater. The wastewater is absorbed in the absorption field, and the organic matter decomposes in the bio-layer formed in the absorption layer thanks to microbial activity. If necessary, the absorption package can be extended to a soil filter by equipping it with a collection pipe system. In this case, a collection pipeline is installed under the absorption pipes and filtration layer leading to the main collection pit of the line, from where the filtered water is directed to an appropriate discharge site.
Structure:
Two-part tank, total volume 2000 l
1. Tank 1000 l
2. Tank 500+500 l
Slowed flow for better separation capability. Dimensions of the connected tank are 2380 x 1750 mm (4.17 m2), height 725 mm, rise pipe 1000 mm.
Installation:
The tank requires only about 5 m2 of surface area, and the absorption field about 30 m2. The settling tank is placed so that the emptying truck has unobstructed access to it. No vehicles should drive on top of the tank, with a protection distance of at least two meters. The installation depth from the bottom of the settling tank to the surface of the ground must not exceed 1.5 meters.
Easy maintenance:
The tank has no moving parts or cleanable filters. Emptying twice a year is sufficient when the system is also used for toilet water. If only grey water is directed to the tank, emptying once a year is sufficient. The tank should be filled with water immediately after emptying.
Delivery content:
- Includes pipe accessories for constructing a 28 m2 absorption field.
- A soil absorption system can be built into a soil filter by adding the MX collection pipe package, product code 160415.
- MX-Sako 3/2000 Low
- Absorption package
Cleaning efficiency (hydraulic capacity): 7.0 g
Info: EN 12566-1:2000 / A1:2003
Product code: 160405
Nominal volume: 2 m3
Water tightness: Approved
Structural strength: Approved
Material: Approved
Tested according to product standard EN 12566-1:2000 / A1:2003
Testing agency: SP Technical Research Institute of Sweden,
Box 857, 501 15 Borås, Sweden
SKU: 321120
