Timco ATV-570R Pro Excavator
(V) 103755429
+ shipping, calculated at checkout
You pay 40 012 NOK at checkout. The remaining 9 878 NOK is invoiced when the goods arrive in Norway.
Delivery time approx. 1–3 weeks

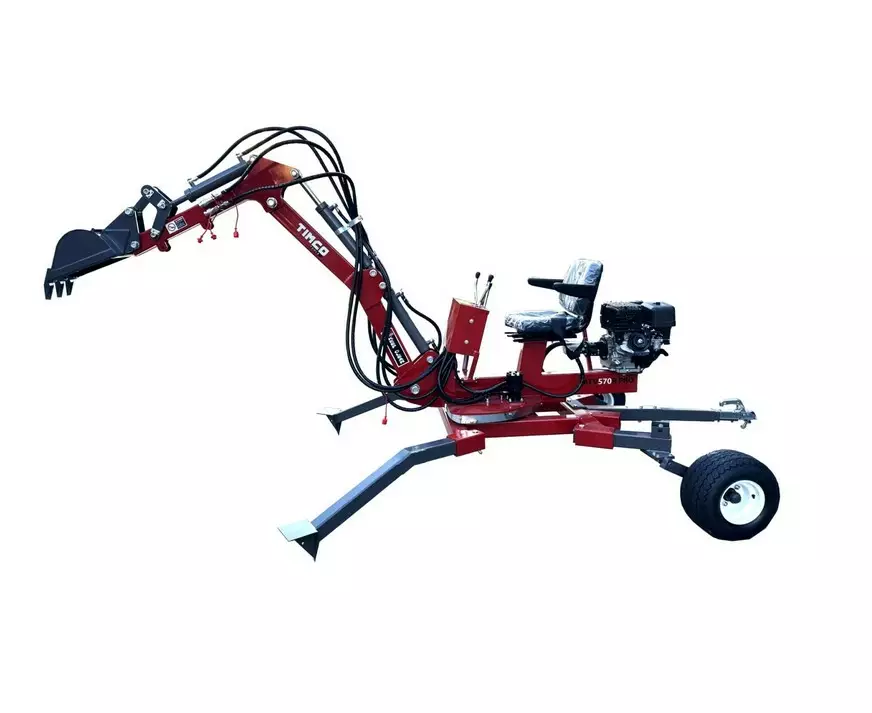

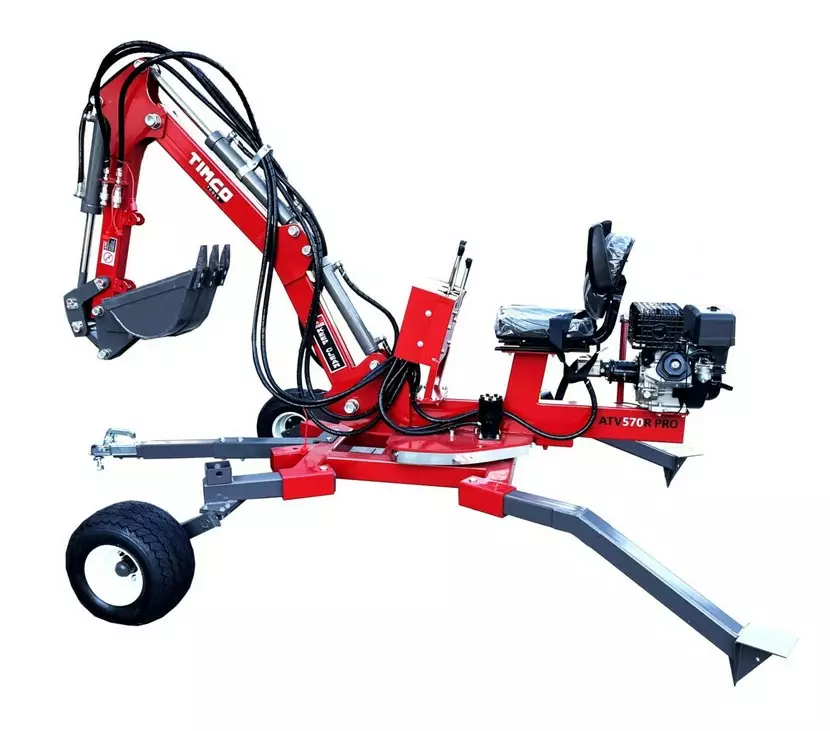

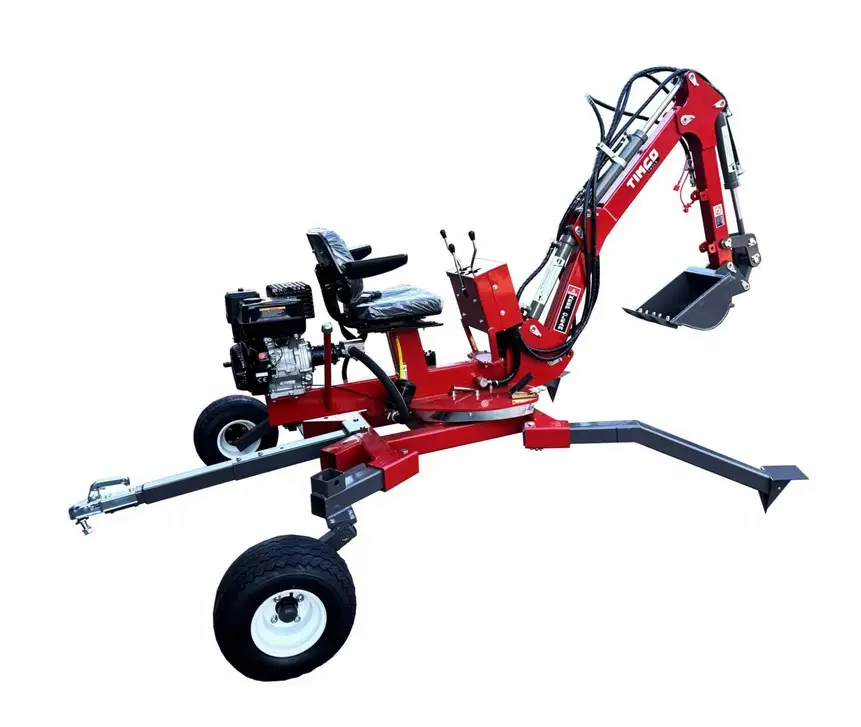

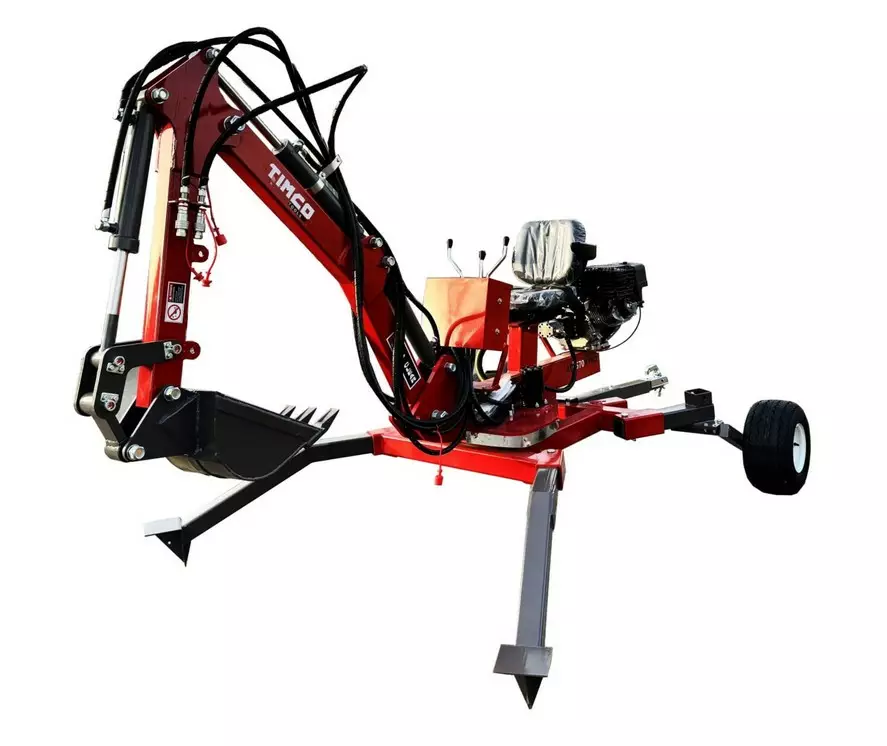

Timco ATV-570R Pro excavator
Enhanced version of the popular ATV-mounted excavator, equipped with additional hydraulics and ample accessories. Comes with two buckets and a thumb attachment.
The Pro version of the Timco ATV-570 excavator offers a broader range of equipment and functionality. The new model is equipped with additional hydraulics, allowing for a more versatile use of attachments. The excavator features a reliable Ducar 15 hp gasoline engine. The Pro model comes standard with a thumb attachment and two buckets; a 600 mm digging bucket and a 400 mm toothed digging bucket.
The Pro model is fitted with connections for hydraulic attachments that can be mounted to the arm. It can connect to equipment such as augers, grapples, or other hydraulic tools. The fully rotating 360° structure allows for effective work over a wide area without moving the machine. The Timco ATV-570 Pro model offers a maximum digging depth of 2.10 meters and a digging radius of 2.80 meters, providing coverage for various excavation tasks.
Transporting with the ATV is easy with a 50 mm ball hitch. During transportation, the support legs are folded into a horizontal position, and during operation, they are locked at the back. The Pro model's additional fittings allow the axle width to be narrowed to 150 cm, significantly easing trailer transport.
The delivery includes, in addition to the arm thumb, two buckets. There is a wide range of attachments available for the model, including buckets of various sizes, augers, frost markers, thumb attachments, and hydraulic breakers.
Technical specifications:
- Weight: 570 kg
- Power: 15 hp gasoline engine (DUCAR, pull-start)
- Maximum digging depth: 2.1 m
- Maximum digging radius: 2.8 m
- Maximum digging height: 2.5 m
- Maximum loading height: 1.2 m
- Support leg width: 1.8 m
- Rotation angle: 360 degrees
- Bucket rotation angle: 160 degrees
- Digging bucket width: 600 mm
- Teeth bucket width: 400 mm
- Axle length in transport position: 1500 mm
- Dimensions: 2240 x 1000 x 850 mm
- Warranty: 12 months
SKU: 6438014422220
